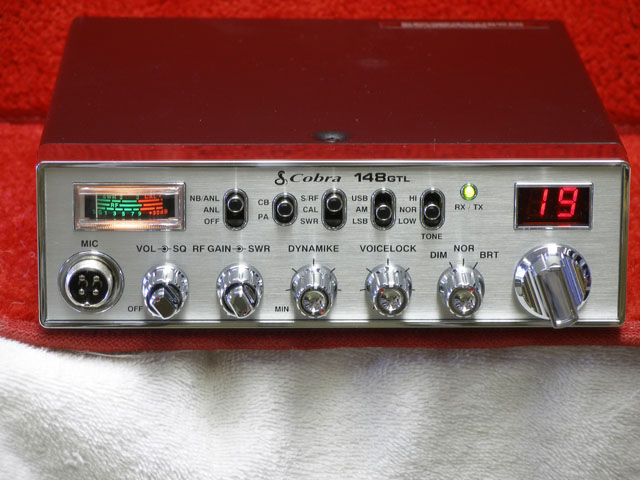

148GTL
Full Featured AM/SSB CB Radio
* 12 Watts Power SSB RF Output
* 40 Channel AM 80 Channels SSB
* SWR Antenna Calibration
* Front Panel Microphone Connector
System
* Dual Conversion AM Receiver
Back by popular demand - The Original 148 GTL! The
Original 148 GTL is back...and better than ever! Professional driver-requested
improvements include a front panel microphone connector for convenient
in-dash installation, 9 foot microphone cord for easy reach anywhere within
the cab, and tactile controls for added convenience and safety when adjusting
functions.
Outstanding Features of the 148 GTL:
Feature Benefit(s)
40 AM and 80 SSB Channels 40 AM, 40 Upper Side
Band, 40 Lower Side Band.
4 Watts AM, 12 Watts SSB The maximum allowed
by law.
SWR Calibration Allows calibration of antenna
system for maximum performance.
9 Foot Microphone Cord For easy reach within
any area of the vehicle.
Tone Control 3 position control allows fine
tuning of audio levels.
Adjustable Dynamike Boost Dynamically boosts
microphone for increased voice clarity.
Tactile Controls Allows you to actually feel
where the dial is in it's rotation without taking your eyes off the road.
PA Capability Use CB radio as a Public Address
System with PA speaker. Receive signals can also be monitored through PA.
RF Gain Adjusts receive gain in weak and strong
signal areas.
Switchable ANL / NB For increased noise reduction.
SPECIFICATIONS:
Unit Dimensions (in.): 2-3/8 H x 7-7/8 W x 9-3/4
D
Microphone Type: 4 Pin Screw-On Dynamic
Frequency Control: Phase Lock Loop Synthesizer
(PLL)
RF Output Power: 4 Watts (4 Watts AM/12 Watts
SSB)
CB Channels: 40 Channels AM (26.965 to 27.405
MHz)
80 Channels SSB (26.965 to 27.405 MHz)
