Cobra 29LXLEHD

Cobra 29LXLEHD (Harley Davidson)

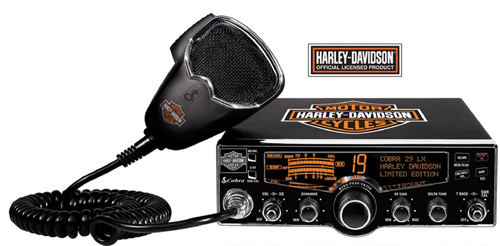

The 29 LX LE HD is a Limited Edition officially licensed Harley Davidson designed CB radio
and microphone using the 29 LX platform.

The 29 LX HD LE features a modern aesthetic design with Harley Davidson branded cabinet
and badge, front control panel and microphone with a selectable LCD Dot Matrix display in
 red, green, blue or amber to compliment the interior of any cab. The display also has
customizable night and day settings to enhance readability in both very bright and dark
conditions. Based on the 29 LTD Classic platform with added features: A 4-color display
where the user can program any one of four colors, radio check diagnostic to allow the
operator to monitor the vehicles antenna system, the voltage system and the radio's RF output power.

For 50 years Cobra has provided the highest quality Citizen Band radios to meet the needs of the professional driver.  The 29 LX LE HD is a culmination of performance, style and innovation in Citizens Band radios. The radio features a completely redesigned, modern look with selectable display that can be programmed to red, green, blue or amber to match the instrument panel of the cab. The display also has customizable night and day settings to enhance readability in both bright and dark conditions.  The large center scroll knob provides simple one-touch programming of the unit for easy setup and channel changes.  The dynamic ergonomic microphone is redesigned for easy and comfortable use.

Based on the 29 LTD Classic platform with added features:  The new weather receiver with scan automatically advances to the next clear channel when driving cross-country ensuring the driver is always getting the latest weather alerts and warnings.  Also new is the industry’s first and only Radio Check Diagnostic.  Now users can monitor the radio’s RF output, SWR setting, and vehicle battery voltage.

The 29 LX LE HD also includes all 40 channel scan and memory channel programming, Instant channel 9 and 19, audible key tones, channel frequency readout for CB and weather channels, 4 watts AM RF power output, the maximum amount of power allowed by law; Talk Back controls allowing drivers to adjust the desired amount of modulation talk-back.

<>Feature Benefit
Selectable 4-Color LCD Display Choose from four easy-to-read display colors: red, blue, green and amber.
10 NOAA Weather Channels Instant access to 10 National Weather Channels, 24 hours a day, in all 50 states.
Emergency Weather Alert Alerts you if threatening weather is nearby with an alert tone even if CB is turned off.
Talk Back This control is used to adjust the desired amount of modulation talk back that is present at the speaker during transmit
Weather Alert Scan Automatically scans for the nearest weather alert signal.
Radio Check Diagnostic Allows testing of important radio functions such as RF power, antenna condition and battery voltage.
Memory Channel Scan Allows scanning of up to 10 channels stored in memory.
Memory Channels Stores up to 10 frequently used channels.
Selectable Key Tone Allows key tone to be turned on or off.
Day / Night Dimmer Control Adjusts brightness of the front panel for day and night driving.
SWR Calibration Allows calibration of antenna system for maximum performance.
Channel Scan Allows scanning of all 40 channels.
Auto Weather Scan Automatically scans for the weather band for the strongest signal.
Frequency Display Displays operating channel frequency of CB and weather band.
9 Foot Microphone Cord For easy reach within any area of the vehicle.
4-Pin Front Microphone Connector Allows convenient installation to be in dash or under dash.
Adjustable Dynamike Boost Dynamically boosts microphone for increased voice clarity.
Tactile Controls Allows you to actually feel where the dial is in it's rotation without taking your eyes off the road.
PA Capability Use CB radio as a Public Address System with PA speaker. Receive signals can also be monitored through PA.
RF Gain Adjusts receive gain in weak and strong signal areas.
Switchable Noise Blanker For increased noise reduction.
Dimmer Control Adjusts brightness of the front panel, channel display and signal strength meter.
4 Watts AM RF Power Output The maximum allowed by law.
Antenna Warning Indicator Illuminates when antenna needs checking.
Instant Channel 9 and 19 Instant access to emergency channel 9 and information channel 19.
Delta Tune Used to clarify incoming signals.

Sensitivity--Less than 1uV for 10db
Selectivity--6db @ 10Khz, 60db @100khz
Image Rejection--80db typical
Adjacent Channel Rejection--60 db typical
RF Gain Range--40db
Audio Power--4 Watts

Output Power--4 watts unmodified
Modulation--Amplitude Modulation (AM)

40 Channels
Weather 162.400 To 162.775Mhz
Frequency Tolerance--.005%
PLL Synthesizer
Size--8 5/8* 7 9/32* 2 13/16
