R&R COMMUNICATIONS, INC.
302-475-1351
*AMATEUR RADIOS/10 METERS*
THIS RADIO BELOW IS
COMPLETELY SET-UP AND READY TO OPERATE.
WE REALIGN AND RETUNE EACH AND EVERY RADIO.
$190.00
We Will Honor The 2 Year Warranty.
Does Not Include Shipping!!

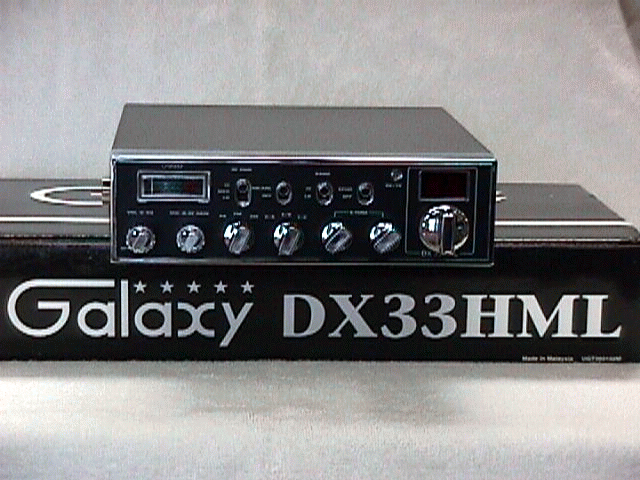

10 METER HAM RADIO
SPECIFICATIONS
MODE: AM/FM
FREQUENCY RANGE: 28.065-28.505- UNMODIFIED
FREQUENCY TOLERANCE: .005%
FREQUENCY STABILITY: .001%
13.8 VOLTS DC POSITIVE OR NEGATIVE GROUND
ILLUMINATED METER
INDICATES RELATIVE OUTPUT POWER & RECEIVER SIGNAL
STRENGTH
OUTPUT POWER: NON MODIFIED: AM/FM-7/4/2 WATTS
CLASS B MODULATION
RECEIVER SENSITIVITY: AM-.5 MICRO VOLTS
FM-1.0 MICRO VOLTS
IMAGE REJECTION: MORE THAN 65db
ADJACENT CHANNEL REJECTION: 60db
CONTROLS:
VOLUME-ON/OFF, MIC/RF GAIN, PA/AM/FM, BAND SELECTOR
A- F, ECHO, ECHO SPEED, HI/MED/LO OUTPUT POWER, NB/ANL-OFF, HI/LO BAND,
ECHO ON/OFF, CHANNEL SELECTOR.
STANDARD 4 PIN MIC PLUG & 3 PIN PWR JACK
FUNCTIONS:
HI MED LO POWER STAGE, ECHO, TALK BACK.
NO FREQUENCY COUNTER NO SWR
SIZE: 2-3/8 H, 7-7/8 W, 9-1/4 D DIMENSIONS ARE IN INCHES
