R & R COMMUNICATIONS, INC.
302-475-1351
*AMATEUR RADIOS/10 METERS*

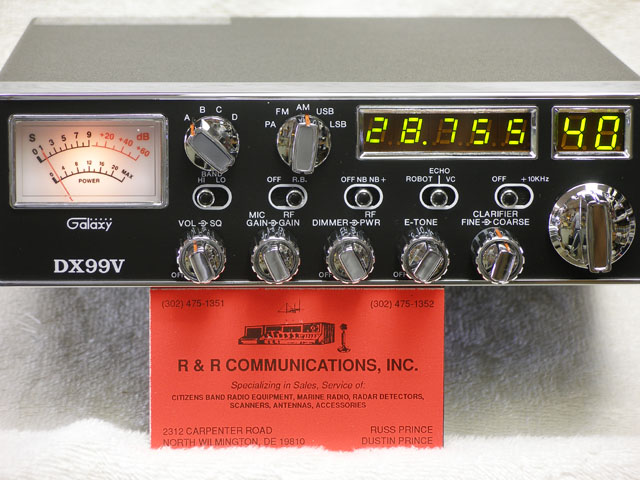

GALAXY DX99V
$375.00
THIS RADIO BELOW IS COMPLETELY
SET-UP AND READY TO OPERATE.
WE REALIGN AND RETUNE EACH AND EVERY RADIO.
Please Call us at 302-475-1351
We Will Honor The 2 Year Warranty!
Does Not Include Shipping!!
10 METER HAM RADIO
SPECIFICATIONS:
MODE: AM/FM/USB/LSB
FREQUENCY RANGE: 28.315-28.755–UNMODIFIED
FREQUENCY TOLERANCE: .005%
FREQUENCY STABILITY: .001%
13.8 VOLTS DC POSITIVE OR NEGATIVE GROUND
LARGE ILLUMINATED METER INDICATES RELATIVE OUTPUT
POWER & RECEIVER SIGNAL STRENGTH.
OUTPUT POWER: NON MODIFIED: AM-FM....10WATTS
SSB...........30 WATTS PEP
CLASS B MODULATION
RECEIVER SENSIVITY:AM -1.0 MICRO VOLTS
FM -1.0 MICRO VOLTS
SSB -.05 MICRO VOLTS
IMAGE REJECTION: MORE THAN 65db
ADJACENT CHANNEL REJECTION: 60db AM/FM, 70db SSB
CLARIFIER: FINE UNLOCKED +/- 1 KHZ –UNMODIFIED
COURSE LOCKED- UNMODIFIED
CONTROLS: VOLUME/SQUELCH, MIC GAIN/RF GAIN, DIMMER/RF
POWER,
ECHO TONE/SPEED, FINE/COURSE CLARIFIER, PA/FM/AM/USB/LSB,
BAND SELECTOR A to D, HI/LO BAND SWITCH, ROGER
BEEP ON/OFF,
NOISE BLANKER ON/OFF, ROBOT/ECHO, VOICE DISGUISE SWITCH,
+10KC SWITCH ON/OFF.
CHANNEL SELECTOR SWITCH AND 5 DIGIT FREQUENCY COUNTER.
STANDARD 4 PIN MIC CONN. & 3 PIN PWR. JACK
FUNCTIONS: VARIABLE RF OUTPUT POWER, ECHO, ROGER BEEP,
TALK-BACK, VOICE DISGUISE, ROBO - TALK, LED DIMMER,
+10KC FOR RC CHANNELS.
SIZE: 2-3/8 H, 7-7/8 W, 9-1/4 D-DIMENSIONS ARE IN INCHES.
