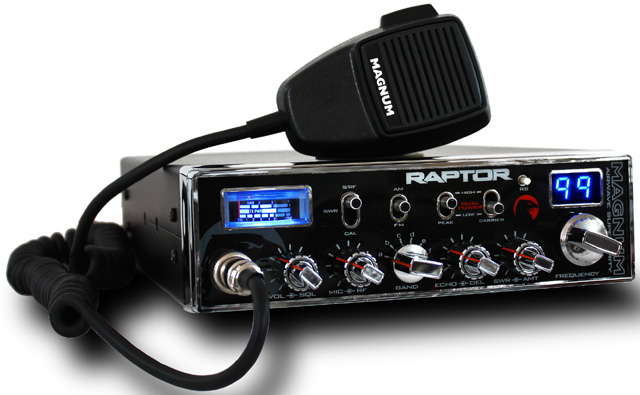

GENERAL SPECIFICATIONS
Emission Modes : FM (F3E) / AM (A3E)
Antenna Impedance : 50 ohm, unbalanced
Frequency Control : Digital Phase-Lock Loop (PLL)
Synthesizer
Frequency Accuracy : Better than +10 ppm from 0 -
40 0C after 15 min. warm up
Power Requirement : 12 – 13.8 V DC, negative ground
Current Consumption : 10 amps maximum
Dimensions : 7.75 x 10.75 x 2.25inches
Weight : 4.4 lbs.
TRANSMITTER SPECIFICATIONS
Power Output : FM ..........................................................................................
15 Watts
: AM Carrier ..............................................
2 Watts Low / 15 Watts High
: AM Peak ...............................................
25 Watts Low / 80 Watts High
Tuning Steps : 10 kHz
Final Transistor : ERF7530
Spurious Emissions : More than 50 dB below peak output
power
Carrier Suppression : More than 40 dB below peak output
power
FM Deviation : +/- 2 kHz maximum
Audio Response : More than 30dB below peak output
Frequency Response : 400 to 2800 Hz
Microphone Impedance : ECM, 600 to 1K ohm
RECEIVER SPECIFICATIONS
Circuit Type : Dual-Conversion Superheterodyne
Sensitivity : AM .................................................................
0.5 ?V at 10 dB S + N/N
: FM ..................................................................
0.3 ?V at 12 dB SINAD
Selectivity : AM / FM ...........................................
6.0 kHz (-6 dB) / 18 kHz (-60 dB)
Adjacent Channel Rejection : Better than 70 dB
IF Rejection : Better than 80 dB for all frequencies
Frequency Response : 250 to 3000 Hz
Audio Output Power : 2 watts minimum at 10% THD with
an 8 ohm load
Audio Output Impedance : 8 ohms
