*AMATEUR RADIOS/10 METERS*

---

MAGNUM S-6
THIS RADIO BELOW IS COMPLETELY SET-UP AND READY TO OPERATE.
WE REALIGN AND RETUNE EACH AND EVERY RADIO.
Does Not Include Shipping!!
Factory Warranty Only.

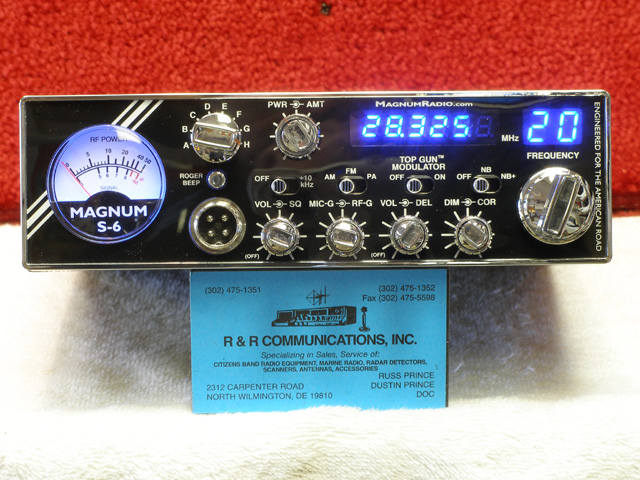

Magnum S-6
10 METER HAM RADIO
SPECIFICATIONS Dual Mosfet Finals
MODE: AM/FM/
FREQUENCY RANGE: 28.005-29.655 NON-MODIFIED
FREQUENCY TOLERANCE: .005%
FREQUENCY STABILITY: .001%
INPUT VOLTAGE: 13.8VDC
BACKLIGHTED METER INDICATING RELATIVE OUTPUT POWER , RECEIVER SIGNAL STRENGTH & SWR.
OUTPUT POWER: NON MODIFIED:  AM---9 WATTS Average
                                                             FM---40 WATTS Average
CLASS B MODULATION AM
RECEIVER SENSITIVITY: AM/CW----------1.0 MICRO VOLTS FOR 10dB
                                            FM----------------1.0 MICRO VOLTS FOR 20dB
                                            SSB---------------0.5 MICRO VOLTS FOR 10dB
DUAL CONVERSION
IMAGE REJECTION: >65dB
ADJACENT CHANNEL REJECTION: GREATER THAN 70dB
SELECTIVITY: -55dB
HUM & NOISE: 40dB
SENSIVITY AM---1.0uV @10dB
                    FM---.30uV @12dB
CONTROLS & AMENITIES:
BLUE LIGHTS, VOLUME/SQUELCH CONTROL, MIC GAIN/RF GAIN CONTROL, TURBO ECHO WITH VOLUME/DELAY CONTROLS, FREQUENCY BAND A TO H, VARIABLE RF POWER CONTROL/VARIABLE TALK-BACK CONTROLS, 6 DIGIT COUNTER, 2 DIGIT CHANNEL DISPLAY, SWITCHABLE ROGER BEEP, NOISE BLANKER SWITCH, TOP GUN MODULATOR SWITCH, AM/FM/PA SWITCH, +10 KC SWITCH, LARGE S/RF/SWR METER, STANDARD 3 PIN POWER JACK, STANDARD 4 PIN MIC SOCKET.
13.8VDC NEGATIVE GROUND
SIZE: 7 3/4*2 1/2*10 3/4 Factory Warranty only!!

---
