*AMATEUR RADIOS/10 METERS*

THIS RADIO BELOW IS COMPLETELY SET-UP AND READY TO OPERATE.
WE REALIGN AND RETUNE EACH AND EVERY RADIO.
Please Call us at 302-475-1351
OR E-mail Us For Current Pricing.

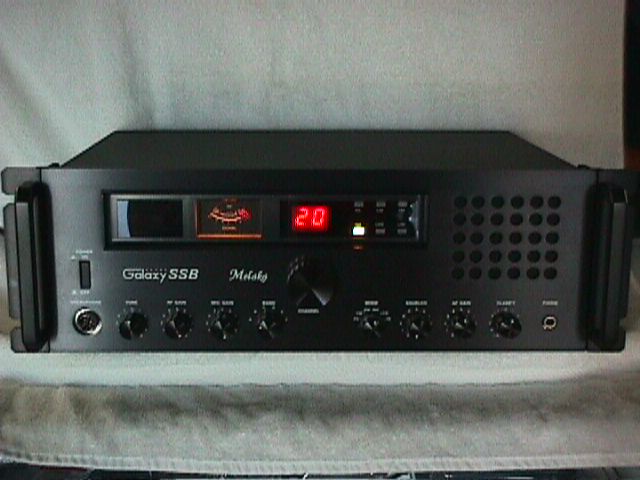

GALAXY MELAKA
10 METER BASE HAM RADIO
SPECIFICATIONS

MODE: CW/FM/AM/USB/LSB
FREQUENCY RANGE:  28.065-28.505 MHZ - UNMODIFIED
FREQUENCY TOLERANCE: .005%
FREQUENCY STABILITY:    .003%
110 VOLTS AC, 60 CYCLES
1 LARGE METER INDICATING RELATIVE OUTPUT POWER & RECEIVER SIGNAL STRENGTH.
OUTPUT POWER: NON MODIFIED: AM/FM----------  -5 WATTS
                                                            CW/USB/LSB----12 WATTS PEP
CLASS B AMPLITUDE MODULATION–AM
RECEIVER SENSITIVITY: AM----1.0 MICRO VOLT
                                            FM----1.0 MICRO VOLT
                                            SSB----0.2 MICRO VOLT
IMAGE REJECTION: MORE THAN 50 db
ADJACENT CHANNEL REJECTION: GREATER THAN 75 db
CROSS MODULATION: GREATER THAN 50db
CLARIFIER: UNLOCKED +/- 1KHZ–UNMODIFIED
CONTROLS: POWER ON/OFF SWITCH, TONE CONTROL, RF GAIN CONTROL, MIC GAIN CONTROL, BAND SELECTOR, CHANNEL SELECTOR, MODE SELECTOR, SQUELCH CONTROL, AF (VOLUME) CONTROL, CLARIFIER CONTROL.
AMENITIES:
4 PIN FRONT MOUNTED MIC JACK, HEADPHONE ADAPTOR, FULL RECEIVE TONE ADJUSTMENT, EXT. FREQUENCY COUNTER JACK, RECORDING OUTPUT JACK, PA JACK, EXT. SPEAKER JACK, CW KEY JACK
