R & R Communications, Inc.
302-475-1351

---

*AMATEUR RADIOS/10 METERS*

---

MINI MAG 30
THIS RADIO BELOW IS COMPLETELY SET-UP AND READY TO OPERATE.
WE REALIGN AND RETUNE EACH AND EVERY RADIO.
Does Not Include Shipping!!
Factory Warranty Only.

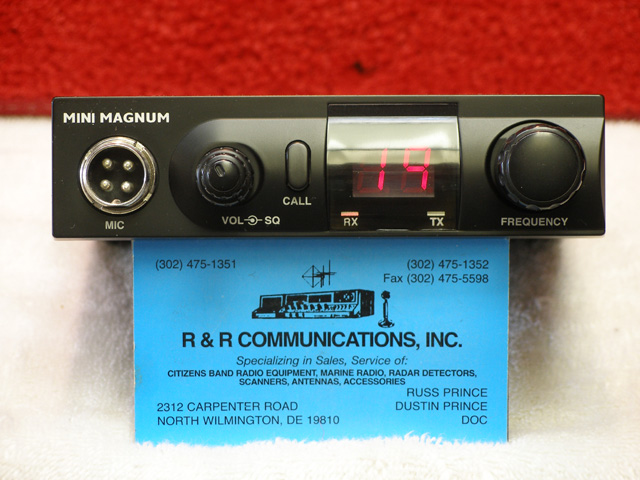

Mini Mag 30
10 METER HAM RADIO
SPECIFICATIONS

MODE: AM
FREQUENCY RANGE: 28.005-29.655 NON-MODIFIED
FREQUENCY TOLERANCE: .005%
FREQUENCY STABILITY: .001%
INPUT VOLTAGE: 13.8VDC
OUTPUT POWER: NON MODIFIED:  AM---5 WATTS Average

CLASS B MODULATION AM
RECEIVER SENSITIVITY: AM----------1.0 MICRO VOLTS FOR 10dB

DUAL CONVERSION
IMAGE REJECTION: >65dB
ADJACENT CHANNEL REJECTION: GREATER THAN 70dB
SELECTIVITY: -55dB
HUM & NOISE: 40dB
SENSIVITY AM---1.0uV @10dB

Size:  5"W*6 1/2"D*1 1/4"H

Factory Warranty only!!

---
