MODE: AM/FM
FREQUENCY RANGE: 28.315-29.655–UNMODIFIED
FREQUENCY TOLERANCE: .005%
FREQUENCY STABILITY: .001%
13.8 VOLTS DC POSITIVE OR NEGATIVE GROUND
OUTPUT POWER: NON MODIFIED: AM/FM—100 WATTS (PEP)
CLASS B MODULATION
RECEIVER SENSITIVITY: AM-.5 MICRO VOLTS
FM-.5MICRO VOLTS
IMAGE REJECTION: MORE THAN 60db
ADJACENT CHANNEL REJECTION: 60db

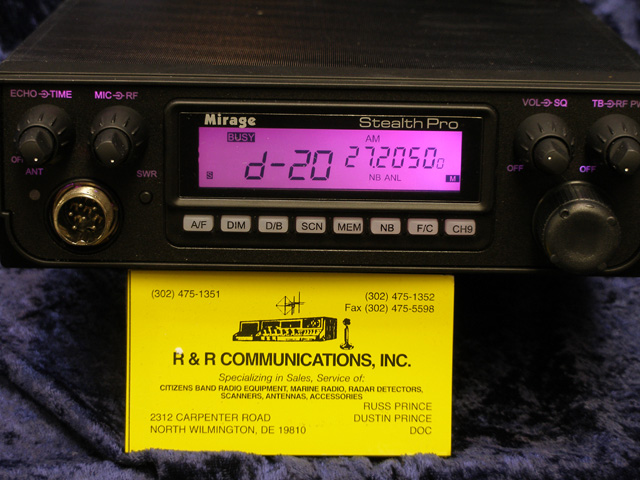

CONTROLS:
SWR/POWER SWITCH, MODE SWITCH (AM OR FM), DIMMER BUTTON
& FOR SETTING THE COLOR OF THE BACKLIGHT, BAND SELECT BUTTON, SCAN
BUTTON, MEMORY BUTTON, NB BUTTON, FREQUENCY LOCK BUTTON, CHANNEL 9 BUTTON,
CHANNEL SELECTOR, ECHO CONTROL, TIME CONTROL, MIC GAIN CONTROL,
MIC GAIN CONTROL, RF GAIN CONTROL, LCD DISPLAY DISPLAYS
THE CLOCK, FREQUENCY, FUNCTIONS & MEMORY CHANNELS, ON/OFF-VOLUME CONTROL,
SQUELCH CONTROL, TALK-BACK SWITCH, VARIABLE RF POWER CONTROL.
INCLUDES STOCK MIC, DC CORD MOUNTING BRACKET &
KNOBS, MANUAL.
SIZE: L=9*W=71/4*H=2 1/4 TOTAL LENGTH INCLUDING KNOBS & HEATSINK 10 1/2" DIMENSIONS ARE IN INCHES.
