R & R COMMUNICATIONS, INC.
302-475-1351
*AMATEUR RADIOS/10 METERS*
RCI2950DX1
THIS RADIO BELOW IS COMPLETELY
SET-UP AND READY TO OPERATE.
WE REALIGN AND RETUNE EACH AND EVERY RADIO.
Please Call us at 302-475-1351
We Honor The 2 Year Warranty!
Does Not Include Shipping Charges
Or Replacement!!

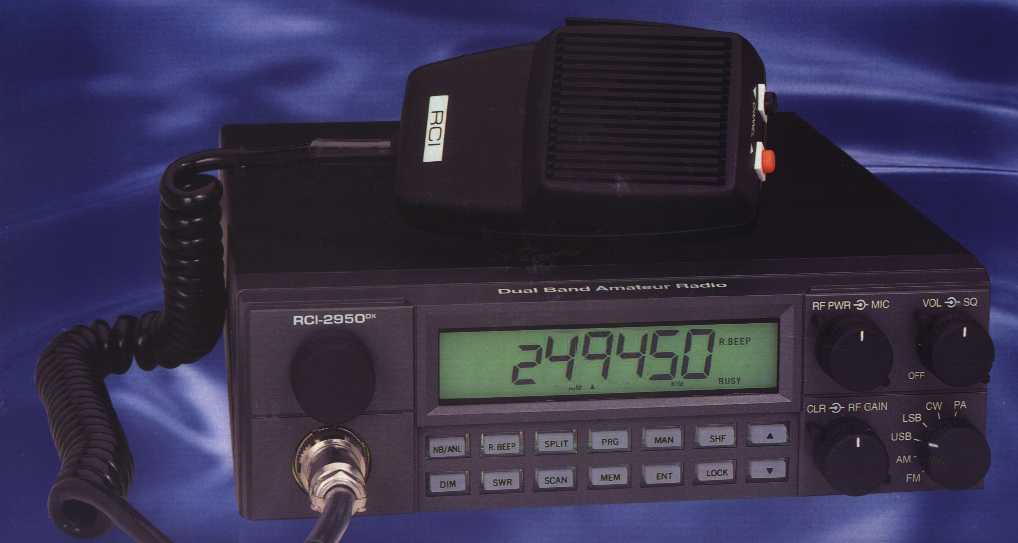

RCI 2950DX1
10 & 12 METER MOBILE HAM RADIO
2 YEAR WARRANTY
SPECIFICATIONS:
MODE: CW/FM/AM/USB/LSB
FREQUENCY RANGE: 24.8900-24.9900 & 28.000-29.699
MHZ- UNMODIFIED
FREQUENCY TOLERANCE: .005%
FREQUENCY STABILITY: .001%
13.8 VOLTS DC
METER FUNCTIONS: BAR GRAPH READS RELATIVE RF OUTPUT,
RECEIVE SIGNAL STRENGTH, MODULATION, AND SWR.
OUTPUT POWER/ SWR
OUTPUT POWER: AM/FM--------------10 WATTS–UNMODIFIED
SSB------------------ 25 wattsWATTS PEP–UNMODIFIED
CLASS B AM MODULATION
RECEIVER SENSITIVITY: AM-------0.50 MICRO VOLT
FM-------0.25 MICRO VOLT
SSB------0.15 MICRO VOLT
IMAGE REJECTION: -65 db
ADJACENT CHANNEL REJECTION: GREATER THAN 75db
CLARIFIER: UNLOCKED +/- 5KHZ–UNMODIFIED
CONTROLS:
FREQUENCY SELECTOR, VARIABLE RF POWER, MIC GAIN, ON/OFF-VOLUME,
SQUELCH, RF GAIN, CLARIFIER, MODE, NB/ANL, ROGER BEEP, SPLIT FREQUENCY,
PROGRAM, MANUAL, SHIFT, DIM, SWR, SCAN, MEMORY, ENTER, LOCK, UP/DOWN SWITCHES.
AMENITIES:
6 DIGIT FREQUENCY DISPLAY, VARIABLE AM/FM OUTPUT POWER,
SWR SYSTEM, ROGER BEEP, 10 MEMORY CHANNELS, SELECTABLE 100HZ-1KHZ-10KHZ-100KHZ
OR 1MHZ STEPS, SPLIT FREQUENCY OR OFFSET FREQUENCY, ABLE TO SCAN YOUR PROGRAMMABLE
CHANNELS, ABLE TO LOCK YOUR KEYBOARD, CHANNEL NUMBER OR FREQUENCY
DISPLAY. 6 PIN MIC JACK FRONT MOUNTED, EXT SPEAK JACK, EXT CW JACK,
EXTRA LARGE HEAT SINK. 2 YEAR FACTORY WARRANTY
PHYSICAL SIZE: 7 3/4 W * 10 3/4 L * 2 3/8 H
