R & R COMMUNICATIONS, INC. 302-475-1351 *AMATEUR RADIOS/10 METERS* RCI2980WX We Honor The 2 Year Warranty

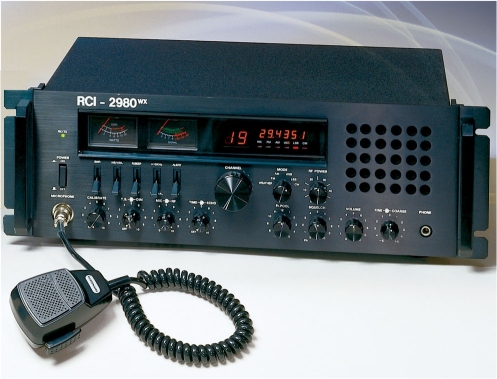

RCI 2980WX 10 METER BASE HAM RADIO WITH WEATHER SPECIFICATIONS
MODE: CW/FM/AM/USB/LSB FREQUENCY RANGE: 28.015-28.565 MHZ - UNMODIFIED FREQUENCY TOLERANCE: .005% FREQUENCY STABILITY: .001% 110 VOLTS AC, 60 CYCLES 2 LARGE METERS INDICATING RECEIVER SIGNAL
STRENGTH
& RF OUTPUT/SWR OUTPUT POWER: NON MODIFIED: AM/FM----------- 10 WATTS
CW/USB/LSB----25 WATTS PEP CLASS B AMPLITUDE MODULATION–AM RECEIVER SENSITIVITY: AM----0.7 MICRO VOLT
FM----0.5 MICRO VOLT
SSB----0.2 MICRO VOLT IMAGE REJECTION: MORE THAN 50 db ADJACENT CHANNEL REJECTION: GREATER THAN 75 db CLARIFIER: FINE UNLOCKED +/- 1KHZ–UNMODIFIED
COURSE LOCKED +/- 5KHZ- UNMODIFIED CONTROLS: ON/OFF, SWR CALIBRATE, TALK-BACK/DIM,
MIC/RF
GAIN, TIME/ECHO, 1-12 FREQ. POOL, SQUELCH, VOLUME, FINE/COURSE
CLARIFIER,
RF POWER, MODE. SWITCHES: SWR, NB/ANL, ROGER BEEP, +/- 10KC, WEATHER
ALERT. AMENITIES: TWO LARGE METERS, 6 DIGIT FREQUENCY COUNTER,
VARIABLE
AM/FM OUTPUT POWER, SWR SYSTEM, FINE/COURSE CLARIFIER, ECHO, ROGER
BEEP,
+10KC FOR RC CHANNELS, VARIABLE TALK-BACK, WEATHER ALERT SYSTEM,
EXTERNAL
FREQUENCY COUNTER JACK, EXTERNAL RECORDING JACK, CW JACK, EXT. SPEAKER
JACK . FRONT MOUNTING STANDARD 4 PIN MIC JACK.
