R & R COMMUNICATIONS, INC.
302-475-1351
*AMATEUR RADIOS/10 METERS*
RCI2985DX
$495.00
THIS RADIO BELOW IS COMPLETELY SET-UP AND READY TO OPERATE.
WE REALIGN AND RETUNE EACH AND EVERY RADIO.
Please Call us at 302-475-1351

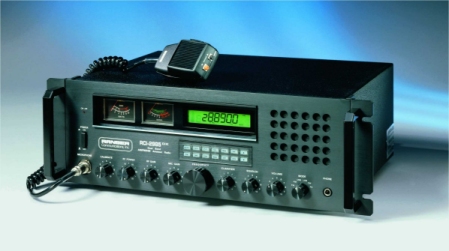

RANGER RCI2985DX
10 & 12 METER HAM RADIO
SPECIFICATIONS

MODE: CW/FM/AM/USB/LSB
FREQUENCY RANGE: 10 METER 28.000 to 29.699 Mhz., 12 METER 24.890 to 24.990Mhz.
FREQUENCY TOLERANCE: .005%
FREQUENCY STABILITY: .001%
110 VOLTS AC, 60 CYCLES
2 LARGE METERS INDICATING RELATIVE OUTPUT POWER/SWR & RECEIVER SIGNAL STRENGTH/MODULATION %
OUTPUT POWER: NON MODIFIED: AM/FM/CW---------10 WATTS
                                                            SSB--------------------25 WATTS PEP
CLASS B AM MODULATION
RECEIVER SENSITIVITY: AM/FM-----------0.5 MICRO VOLTS
                                                 SSB-----------0.15 MICRO VOLTS
IMAGE REJECTION:  MORE THAN 50db
ADJACENT CHANNEL REJECTION: >50db
CLARIFIER:  LOCKED-+/- 5 KHZ

CONTROLS: POWER-ON/OFF, SWR CALIBRATE, RF POWER, RF GAIN, MIC GAIN, CLARIFIER, SQUELCH, VOLUME, MODE SELECTOR.
AMENTIES: SWR, ROGER BEEP, SPLIT FREQUENCY, VARIABLE RF OUTPUT POWER, 10 CHANNEL MEMORY WITH SCAN CAPABILITIES, 6 DIGIT FREQUENCY DISPLAY, HEADPHONE JACK, PA JACK, EXTERNAL SPEAKER JACK, CW KEY JACK, 12VDC OUTPUT JACK
SIZE: 19" WIDE * 14" DEEP * 6" HIGH
