*AMATEUR RADIOS/ 6 METERS*
THIS RADIO BELOW IS
COMPLETELY SET-UP AND READY TO OPERATE.
WE REALIGN AND RETUNE EACH AND EVERY RADIO.
Please Call us at 302-475-1351
OR E-mail
Us For Current Pricing.

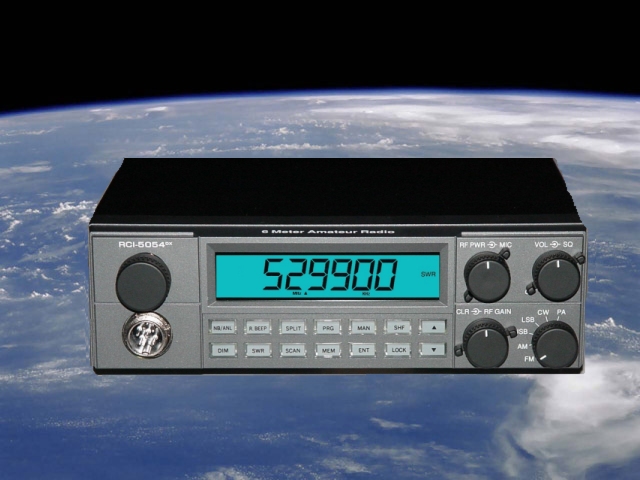

RCI 5054DX
6 METER MOBILE HAM RADIO
SPECIFICATIONS
MODE: CW/FM/AM/USB/LSB
FREQUENCY RANGE: 50.000 - 54.000 Mhz
FREQUENCY TOLERANCE: .005%
FREQUENCY STABILITY: .001%
13.8 VOLTS DC
METER FUNCTIONS: BAR GRAPH READS RELATIVE RF OUTPUT,
RECEIVE SIGNAL STRENGTH, MODULATION, AND SWR.
OUTPUT POWER: AM/FM/CW--------10 WATTS–UNMODIFIED
SSB------------------ 25 WATTS PEP–UNMODIFIED
CLASS B AM MODULATION
RECEIVER SENSITIVITY: AM-------0.50 MICRO VOLT
FM-------0.25 MICRO VOLT
SSB------0.15 MICRO VOLT
IMAGE REJECTION: -65 db
ADJACENT CHANNEL REJECTION: GREATER THAN 75db
CLARIFIER: UNLOCKED +/- 5KHZ–UNMODIFIED
CONTROLS:
FREQUENCY SELECTOR, VARIABLE RF POWER, MIC GAIN, ON/OFF-VOLUME,
SQUELCH, RF GAIN, CLARIFIER, MODE, NB/ANL, ROGER BEEP, SPLIT FREQUENCY,
PROGRAM, MANUAL, SHIFT, DIM, SWR, SCAN, MEMORY, ENTER, LOCK, UP/DOWN SWITCHES.
AMENITIES:
6 DIGIT FREQUENCY DISPLAY, VARIABLE AM/FM OUTPUT POWER,
SWR SYSTEM, ROGER BEEP, 10 MEMORY CHANNELS, SELECTABLE 100HZ-1KHZ-10KHZ-100KHZ
OR 1MHZ STEPS, SPLIT FREQUENCY OR OFFSET FREQUENCY, ABLE TO SCAN YOUR PROGRAMMABLE
CHANNELS, ABLE TO LOCK YOUR KEYBOARD, CHANNEL NUMBER OR FREQUENCY
DISPLAY. 6 PIN MIC JACK FRONT MOUNTED, EXT SPEAK JACK, EXT CW JACK,
EXTRA LARGE HEAT SINK.
PHYSICAL SIZE: 7 3/4 W * 10 3/4 L * 2 3/8 H
