R & R COMMUNICATIONS, INC.
302-475-1351
*AMATEUR RADIOS/10 METERS*
GENERAL
STONEWALL JACKSON
THIS RADIO BELOW IS COMPLETELY SET-UP AND READY TO OPERATE.
WE REALIGN AND RETUNE EACH AND EVERY RADIO.
Please Call us at 302-475-1351
1 Year  Warranty

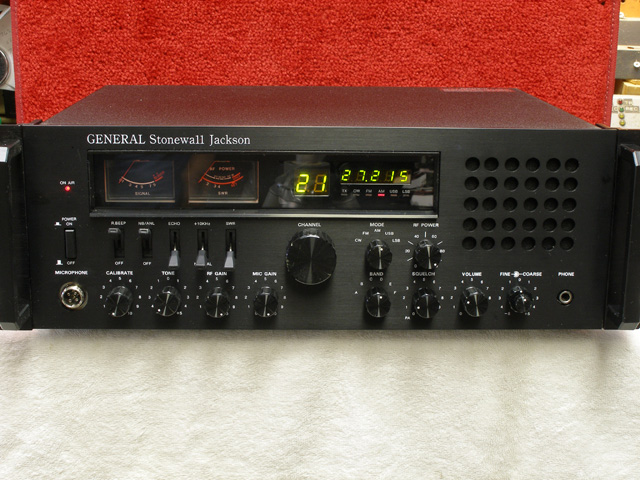

General Stonewall Jackson
10 METER HAM RADIO
SPECIFICATIONS

MODE: CW/FM/AM/USB/LSB
FREQUENCY RANGE: 28.765-29.205 MHZ-- UNMODIFIED
FREQUENCY TOLERANCE: .005%
FREQUENCY STABILITY: .003%
110 VOLTS AC, 60 CYCLES
2 LARGE METERS INDICATING RELATIVE OUTPUT POWER/SWR & RECEIVER SIGNAL
STRENGTH/MODULATION PERCENTAGE.
OUTPUT POWER: NON MODIFIED: AM/FM/CW---------50 WATTS
                                                                       SSB-------------------150 WATTS PEP
CLASS B AM MODULATION
RECEIVER SENSITIVITY: AM/FM-------     0.5 MICRO VOLTS
                                                    SSB------------     0.3 MICRO VOLTS
IMAGE REJECTION: -50db
ADJACENT CHANNEL REJECTION: -60db
CLARIFIER: FINE- LOCKED-+/- 1KHZ
                         COURSE-UNLOCKED- +/- 5KHZ
CONTROLS:
POWER ON/OFF, SWR CALIBRATE, DIM/TALK BACK, RF/MIC GAIN, ECHO ON/OFF, CHANNEL SELECTOR, BAND SELECTOR A-F, SQUELCH,VOLUME, CLARIFIER, SWR/CAL, NB/ANL, ROGER BEEP, NOISE FILTER, + 10KHZ, MODE, RF POWER
AMENITIES: TWO LARGE METERS, ECHO WITH TALK-BACK, ROGER BEEP, 5 DIGIT FREQUENCY COUNTER, VARIABLE RF OUTPUT POWER, +10KHZ FOR RC CHANNELS,  UNLOCKED CLARIFIER, PHONE JACK, STANDARD 4 PIN MIC JACK, EXT FREQ COUNTER JACK, EXT RECORDING JACK, EXT SPEAKER JACK, CW KEY JACK
Factory Warranty Only!!
