Mirage MX-86HPPlus Shipping

We Will Honor The 1 Year Warranty!

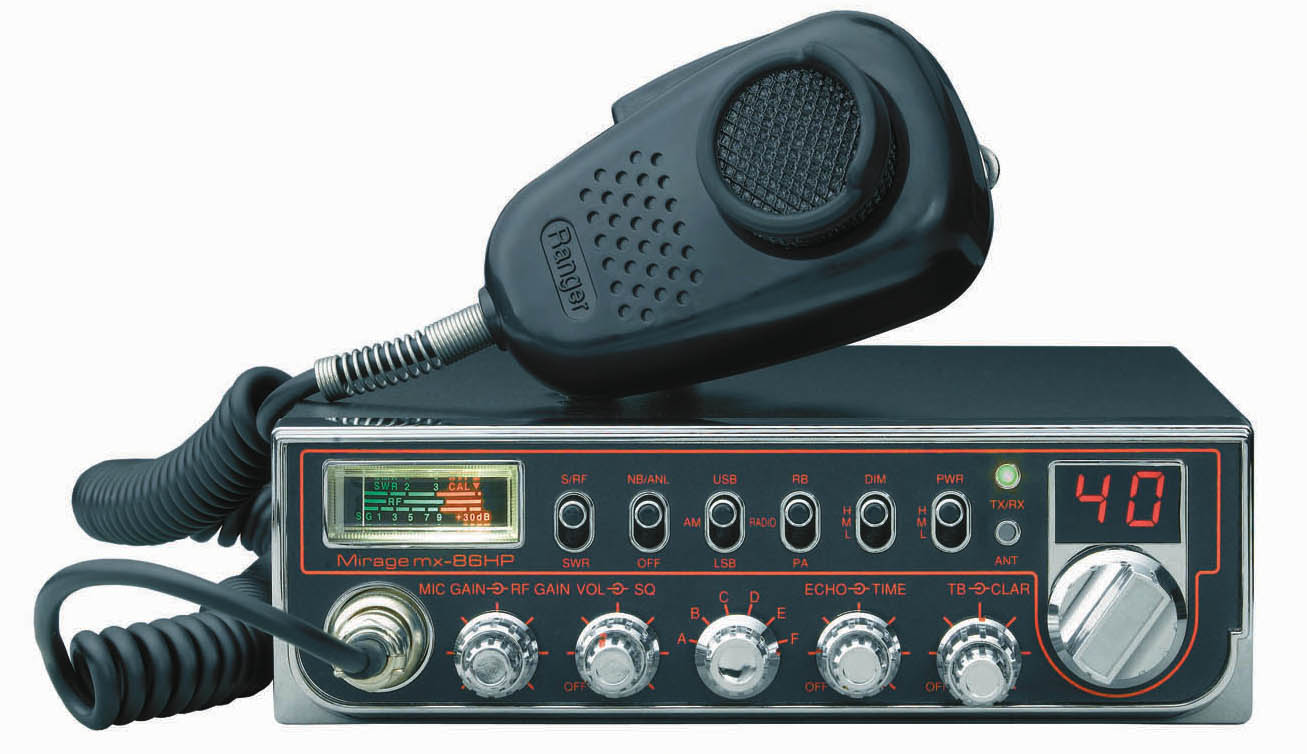

MX86hp
10 METER HAM MOBILE
DUAL FINAL

SPECIFICATIONS:

<>MODE: AM /SSB
FREQUENCY RANGE: 28.145-28.575 MHZ UNMODIFIED
FREQUENCY TOLERANCE: .005%
FREQUENCY STABILITY:    .001%
13.8 VOLTS DC POSITIVE OR NEGATIVE GROUND
ILLUMINATED METER INDICATING RELATIVE OUTPUT POWER, RECEIVER SIGNAL STRENGTH & SWR
OUTPUT POWER: AM      ----------LO-----------2 WATTS
                                                                   MEDIUM---4 WATTS
                                                      HIGH-------10 WATTS
                                      SSB---------------25WATTS
HIGH & LOW LEVEL CLASS B MODULATION
RECEIVER SENSITIVITY: AM-----<0.5 MICRO VOLTS FOR 10db

IMAGE REJECTION:   MORE THAN 50db
ADJACENT CHANNEL REJECTION: 60db
SELECTIVITY: AM 6db @ 3KHZ.
AUDIO POWER 4 WATTS
CONTROLS:
RF GAIN, MIC GAIN, SQUELCH, ON-OFF/VOLUME, BAND SELECTOR (A TO F), ECHO/TIME, CLARIFIER, TALK-BACK, CHANNEL SELECTOR, S-RF-SWR SWITCH, NB/ANL/OFF SWITCH, MODE SWITCH (AM-LSB-USB), RB/EADIO/PA SWITCH, DIMMER SWITCH, POWER SWITCH, ANTENNA WARNING LED.

AMENITIES:
STANDARD 4 PIN MIC JACK FRONT MOUNTING, STANDARD 3 PIN POWER JACK, PA JACK, EXTERNAL SPEAKER JACK, FC JACK FOR EXTERNAL FREQUENCY COUNTER, SWITCHABLE RF POWER CONTROL, DUAL FINALS, VARIABLE TALK-BACK, AUTOMATIC SWR (NO CALIBRATION), FULL VARIABLE ECHO CONTROL WITH VARIABLE TIME DELAY, 3 POSITION DIMMER SWITCH, ANTENNA WARNING INDICATOR LED, +10 KC SWITCH ALLOWING YOU ALL OF THE "A" CHANNELS.

SIZE: 2-1/4 H, 7-3/8 W, 8-3/4 D   DIMENSIONS ARE IN INCHES
